Giwa X tape with continuous labyrinth with double filtration is an innovative system structure that enhances water distribution and minimizes the risk of clogging. Giwa X tape is particularly beneficial for agricultural applications where water quality may be compromised, providing a reliable solution for efficient drop-by-drop irrigation.
The double filtration system in Giwa X tape offers significant advantages over traditional filtration systems, particularly in terms of efficiency and effectiveness in challenging water conditions.
The double filtration system in Giwa X tape features a much wider filtration area compared to traditional filters. This design allows it to retain up to 50 times more impurities than conventional filters, making it highly effective for use with poor-quality water, such as silty or muddy sources.

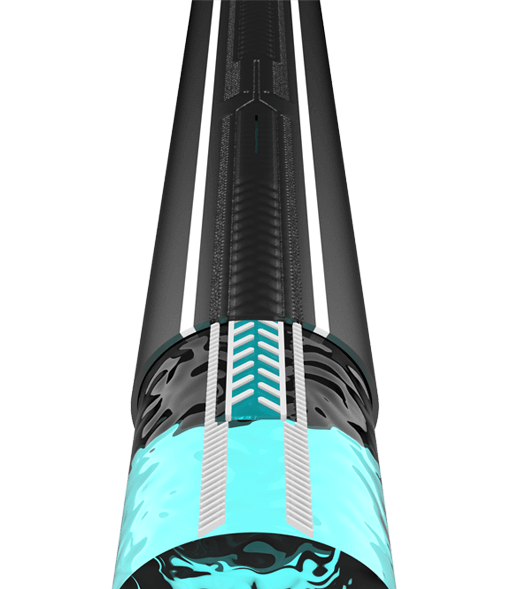

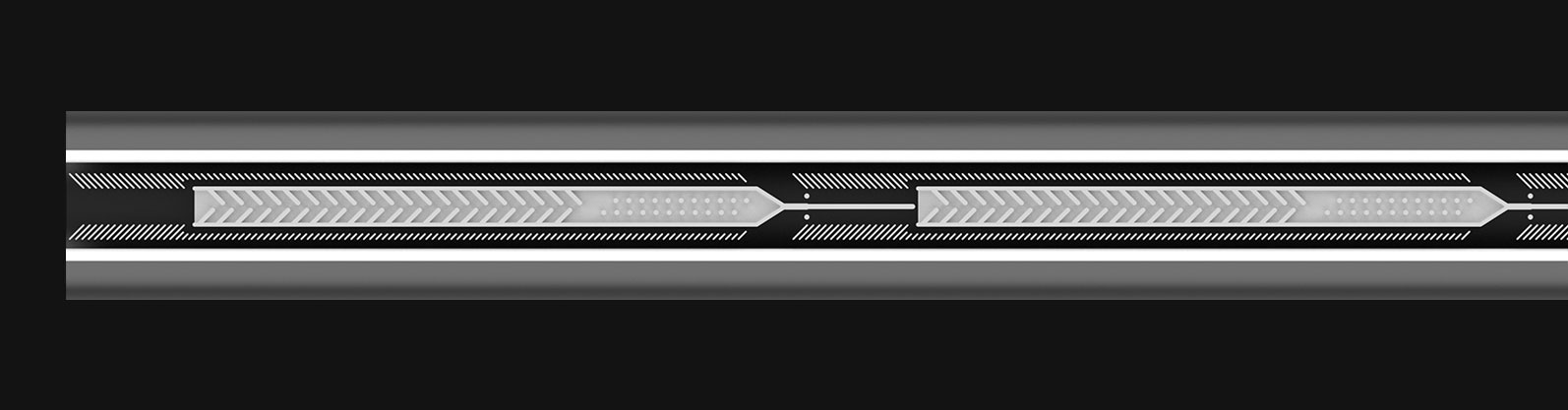

Giwa X tape’s dual filters are strategically placed on both sides of the labyrinth structure, which not only increases the overall filtration surface but also enhances the likelihood of maintaining flow even if one filter becomes partially blocked. This redundancy ensures consistent performance and reduces maintenance needs.
The innovative design of the double filter allows for a more uniform water flow rate, which is critical for effective irrigation. Traditional systems may experience significant pressure drops due to clogging, leading to uneven water distribution. The Giwa X tape mitigates this risk by allowing water to bypass clogged filters through alternative inlets, ensuring that irrigation can continue without interruption.
Adaptability to Water Quality: While traditional filtration systems are generally limited to filtering out larger particles and some organic matter, the Giwa X tape’s advanced filtering capabilities make it suitable for a wider range of water qualities. This adaptability means that it can be utilized effectively in various agricultural environments, particularly where water quality is compromised.
Technical data Ø16
| Wall тhickness | Inner nominal diameter | Outer diameter | Nominal pressure | Range of working pressure | Washing Pressure | Minimal filtration |
|---|---|---|---|---|---|---|
| 6mil [150mic] | 16mm | 16,3mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 8mil [200mic] | 16mm | 16,4mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 10mil [250mic] | 16mm | 16,5mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 8mil [200mic] | 22mm | 22,4mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 10mil [250mic] | 22mm | 22,5mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 12mil [300mic] | 22mm | 22,6mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
Depending on the uniformity of the field with a constant pressure of 0.7 bar for pipe diameters 16mm.
| Emitter | Uniformity | Emitter spacing 20cm | Emitter spacing 30cm | Emitter spacing 40cm |
|---|---|---|---|---|
| 0,6 L/h | 90% | 140m | 180m | 210m |
| 0,6 L/h | 85% | 170m | 220m | 260m |
| 1,0 L/h | 90% | 100m | 125m | 150m |
| 1,0 L/h | 85% | 125m | 160m | 185m |
| 1,5 L/h | 90% | 70m | 90m | 105m |
| 1,5 L/h | 85% | 85m | 110m | 130m |
| 2,0 L/h | 90% | 35m | 45m | 50m |
| 2,0 L/h | 85% | 75m | 95m | 105m |

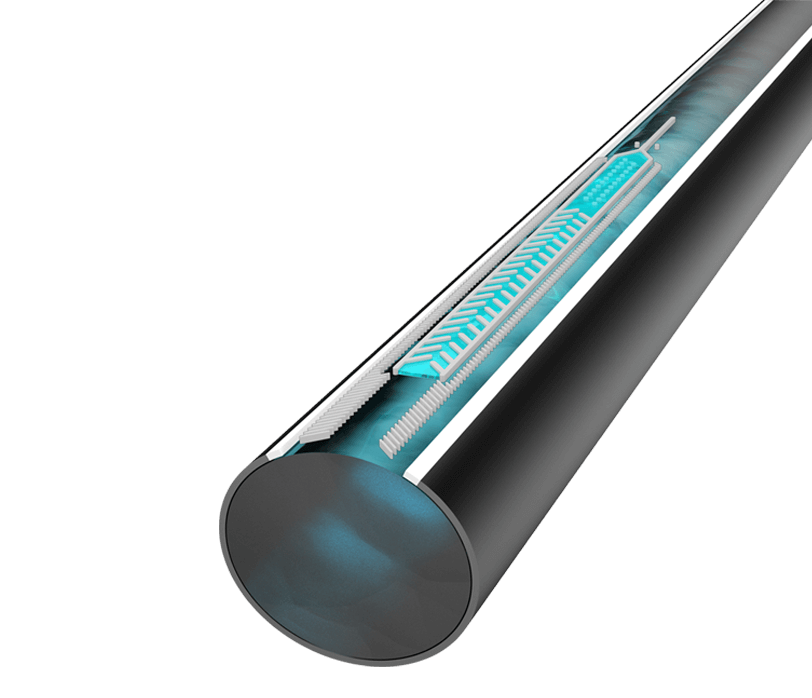

Product range Ø16
The table shows the characteristics of the product with wall thickness of 0.15mm with spacing of emitters to 10cm, 15cm, 20cm and 30cm.
To request, there is a possibility of making tape with a special wall thickness and special emitter spacing, such as 8mil 10mil, 12mil and 14 mil.
| Code | Name | Inner nominal diameter | Wall thickness | Emitter spacing | Flow l/emitter | Flow l/meter | Coil length |
|---|---|---|---|---|---|---|---|
| GX16060610 | Giwatape | 16mm | 6mil [150mic] | 10cm | 0,6lph | 6lph | 3000m |
| GX16060615 | Giwatape | 16mm | 6mil [150mic] | 15cm | 0,6lph | 4lph | 3000m |
| GX16060620 | Giwatape | 16mm | 6mil [150mic] | 20cm | 0,6lph | 3lph | 3000m |
| GX16060630 | Giwatape | 16mm | 6mil [150mic] | 30cm | 0,6lph | 2lph | 3000m |
| GX16061010 | Giwatape | 16mm | 6mil [150mic] | 10cm | 1,0lph | 10lph | 3000m |
| GX16061015 | Giwatape | 16mm | 6mil [150mic] | 15cm | 1,0lph | 7lph | 3000m |
| GX16061020 | Giwatape | 16mm | 6mil [150mic] | 20cm | 1,0lph | 5lph | 3000m |
| GX16061030 | Giwatape | 16mm | 6mil [150mic] | 30cm | 1,0lph | 3,5lph | 3000m |
| GX16061510 | Giwatape | 16mm | 6mil [150mic] | 10cm | 1,5lph | 15lph | 3000m |
| GX16061515 | Giwatape | 16mm | 6mil [150mic] | 15cm | 1,5lph | 10lph | 3000m |
| GX16061520 | Giwatape | 16mm | 6mil [150mic] | 20cm | 1,5lph | 7,5lph | 3000m |
| GX16061530 | Giwatape | 16mm | 6mil [150mic] | 30cm | 1,5lph | 5lph | 3000m |
| GX16062010 | Giwatape | 16mm | 6mil [150mic] | 10cm | 2lph | 20lph | 3000m |
| GX16062015 | Giwatape | 16mm | 6mil [150mic] | 15cm | 2lph | 13,5lph | 3000m |
| GX16062020 | Giwatape | 16mm | 6mil [150mic] | 20cm | 2lph | 10lph | 3000m |
| GX16062030 | Giwatape | 16mm | 6mil [150mic] | 30cm | 2lph | 6lph | 3000m |
Technical data Ø22
The table shows the characteristics of the wall thickness of 6mil and 8mil with spacing from 20cm, 30cm and 40cm.
To request, there is a possibility of making tape with a special wall thickness and special emitter spacing.
| Wall thickness | Inner nominal diameter | Outer diameter | Nominal pressure | Range of working pressure | Washing Pressure | Minimal filtration |
|---|---|---|---|---|---|---|
| 6mil [150mic] | 16mm | 16,3mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 8mil [200mic] | 16mm | 16,4mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 10mil [250mic] | 16mm | 16,5mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 8mil [200mic] | 22mm | 22,4mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 10mil [250mic] | 22mm | 22,5mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 12mil [300mic] | 22mm | 22,6mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
Depending on the uniformity of the flow with a constant pressure of 0.7 bar for inner pipe diameters 22mm.
| Emitter | Uniformity | Emitter spacing 20cm | Emitter spacing 30cm |
|---|---|---|---|
| 0,6 L/h | 90% | 330m | 440m |
| 0,6 L/h | 85% | 430m | 550m |
| 1,0 L/h | 90% | 260m | 330m |
| 1,0 L/h | 85% | 300m | 360m |
| 1,5 L/h | 90% | 190m | 240m |
| 1,5 L/h | 85% | 220m | 270m |
| 2,0 L/h | 90% | 130m | 160m |
| 2,0 L/h | 85% | 150m | 180m |

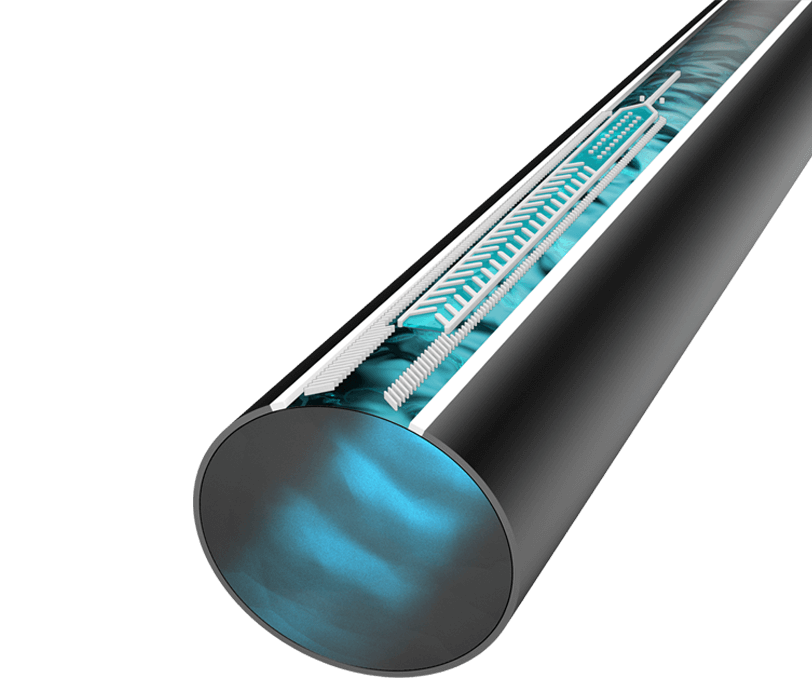

Product range Ø22
The table shows the characteristics of the product with wall thickness of 8 mil, 10 mil and 12 mil, with spacing of emitters to 20cm and 30cm. To request, there is a possibility of making tape with a special wall thickness such as 14 mil and special emitter spacing, such as 10 and 15cm.
| Code | Name | Inner nominal diameter | Wall thickness | Emitter spacing | Flow l/emitter | Flow l/meter | Coil length |
|---|---|---|---|---|---|---|---|
| GX22080620 | Giwatape | 22mm | 8mil [200mic] | 20cm | 0,6lph | 3lph | 1500m |
| GX22080630 | Giwatape | 22mm | 8mil [200mic] | 30cm | 0,6lph | 2lph | 1500m |
| GX22100620 | Giwatape | 22mm | 10mil [200mic] | 20cm | 0,6lph | 3lph | 1300m |
| GX22100630 | Giwatape | 22mm | 10mil [200mic] | 30cm | 0,6lph | 2lph | 1300m |
| GX22120620 | Giwatape | 22mm | 12mil [150mic] | 20cm | 0,6lph | 3lph | 1000m |
| GX22120630 | Giwatape | 22mm | 12mil [150mic] | 30cm | 0,6lph | 2lph | 1000m |
| GX22081020 | Giwatape | 22mm | 8mil [150mic] | 20cm | 1,0lph | 5lph | 1500m |
| GX22081030 | Giwatape | 22mm | 8mil [150mic] | 30cm | 1,0lph | 3,5lph | 1500m |
| GX22101020 | Giwatape | 22mm | 10mil [150mic] | 20cm | 1,0lph | 5lph | 1300m |
| GX22101030 | Giwatape | 22mm | 10mil [150mic] | 30cm | 1,0lph | 3,5lph | 1300m |
| GX22121020 | Giwatape | 22mm | 12mil [150mic] | 20cm | 1,0lph | 5lph | 1000m |
| GX22121030 | Giwatape | 22mm | 12mil [150mic] | 30cm | 1,0lph | 3,5lph | 1000m |
| GX22081520 | Giwatape | 22mm | 8mil [150mic] | 20cm | 1,5lph | 7,5lph | 1500m |
| GX22081530 | Giwatape | 22mm | 8mil [150mic] | 30cm | 1,5lph | 5lph | 1500m |
| GX22101520 | Giwatape | 22mm | 10mil [150mic] | 20cm | 1,5lph | 7,5lph | 1300m |
| GX22101530 | Giwatape | 22mm | 10mil [150mic] | 30cm | 1,5lph | 5lph | 1300m |
| GX22101520 | Giwatape | 22mm | 10mil [200mic] | 20cm | 1,5lph | 7,5lph | 1300m |
| GX22101530 | Giwatape | 22mm | 10mil [200mic] | 30cm | 1,5lph | 5lph | 1300m |
| GX22082020 | Giwatape | 22mm | 8mil [200mic] | 20cm | 2,0lph | 10lph | 1500m |
| GX22082030 | Giwatape | 22mm | 8mil [200mic] | 30cm | 2,0lph | 6lph | 1500m |
| GX22102020 | Giwatape | 22mm | 10mil [200mic] | 20cm | 2,0lph | 10lph | 1300m |
| GX22102030 | Giwatape | 22mm | 10mil [200mic] | 30cm | 2,0lph | 6lph | 1300m |
| GX22122020 | Giwatape | 22mm | 12mil [200mic] | 20cm | 2,0lph | 10lph | 1000m |
| GX22122030 | Giwatape | 22mm | 12mil [200mic] | 30cm | 2,0lph | 6lph | 1000m |
Maintenance of the drop by drop system takes less time. When plants get deep, consistent watering, they thrive. Inefficient, shallow watering can be a real stress for plants. Drip irrigation system promotes healthy growth and disease resistance plants
Install the drop-by-drop irrigation system and you will use less water for irrigation. If you use wells, you will notice a significant decrease in your pumping costs. You will no longer need to water the garden manually. With the automatisation of your system, you will not need to hire someone to water the plants while you are on vacation. Reducing plant diseases and unwanted weeds will considerably reduce your gardening labour and maintenance costs.
